Twin Stage Gas Regulator

Replacement twin stage gas regulator for your Caravan or RV
In stock
Have a question?
Have a Question about this product?
Please type the letters and numbers below

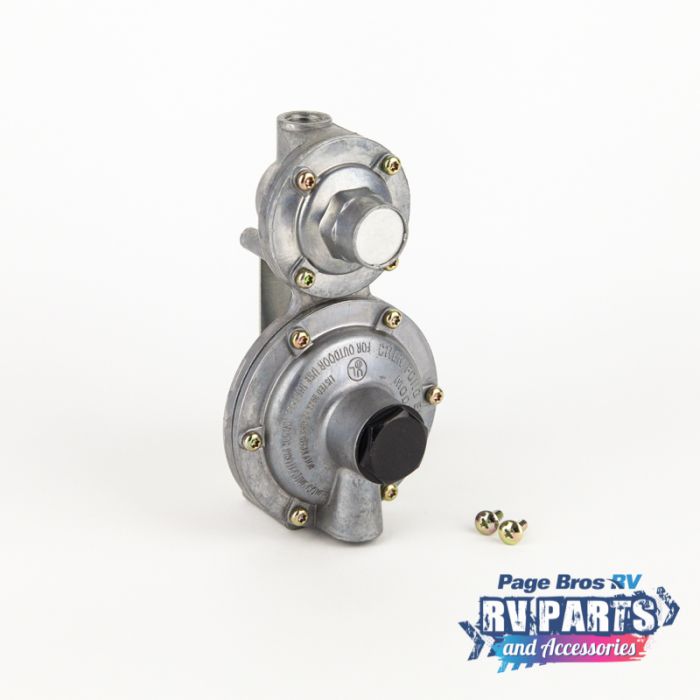

The 6080 integral two-stage regulator is a high pressure regulator combined with a second stage regulator. It is suitable for installing on a Recreation Vehicle with one or two gas cylinders that are manually selected. (Changeover valve required for twin bottles)

  • Two-stage regulation results in a consistent inlet pressure to the second stage, thereby minimizing minor outlet pressure variations from the second stage regulator.
  • Zinc Die Cast
  • Mounting bracket included (removable)



  • Mounting holes 90mm apart
  • Inlet pressure 10 to 250psi
  • Outlet pressure 11" WC
  • Inlet 1/4 Inch FNPT.
  • Outlet 3/8 Inch FNPT. (connects to m-BSP-3/8)
  • Capacity 210,000 BTU/hr
  • Dimensions 142mm x 83mm wide, 75mm thick (excluding bracket)
  • Offset bracket adds 19mm to thickness


***Please note: This LPG Products must be installed by a licensed Gas fitter or Plumber ***
