Winsig Broadband Antenna Kit

The WINSIG Caravan Broadband Antenna kit combines our compact LTE antenna with all of the mounting and sealing items needed to fit directly to the roof of a van or RV. Our Broadband antenna is will receive mobile signals from all Australian phone carriers, and will also boost WIFI signals (such as Telstra Air). Combine this with a broadband mobile router from you favorite carrier, and you have a WiFi enabled van with significantly improved signal coverage as you travel Australia.

Technical Specifications

• Polarity - Omnidirectional
• Frequency bands - 698 MHz to 2.7 GHz
• Raydome material: UV resistant ASA plastic
• Dimensions: Base 60mm dia. x Height 100mm (80mm above mounting surface)
• Weight: 600g excluding coaxial cable

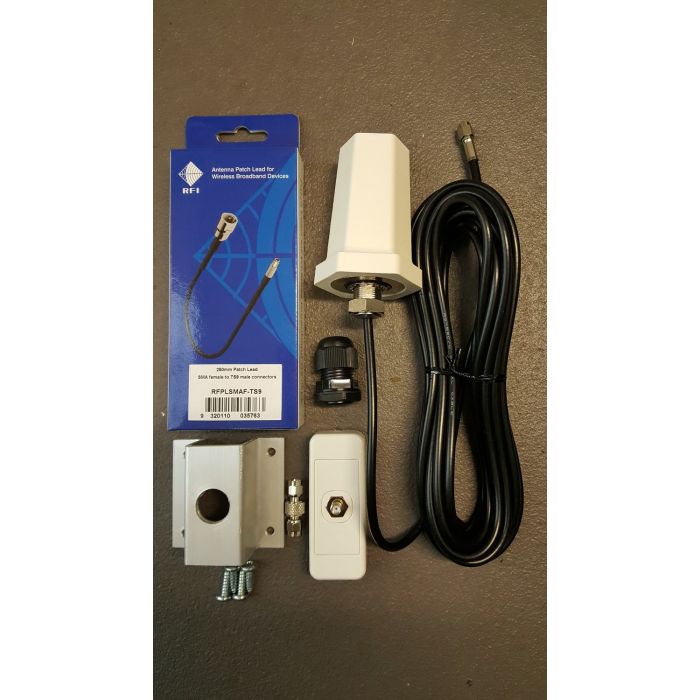

Included in the Box

• WINSIG Broadband antenna
• Standard 5m RG58 coaxial cable with SMA plug termination
• Integrated mounting stud and nut
• Aluminium horizontal surface mounting bracket
• Waterproof cable gland
• Patch cable to suit Telstra Broadband modems (TS9 connector)
• Wall plate and adaptor
• Mounting screws
• Installation instructions
• NOTE: Broadband router is not included. Purchase this from your mobile phone retailer.
